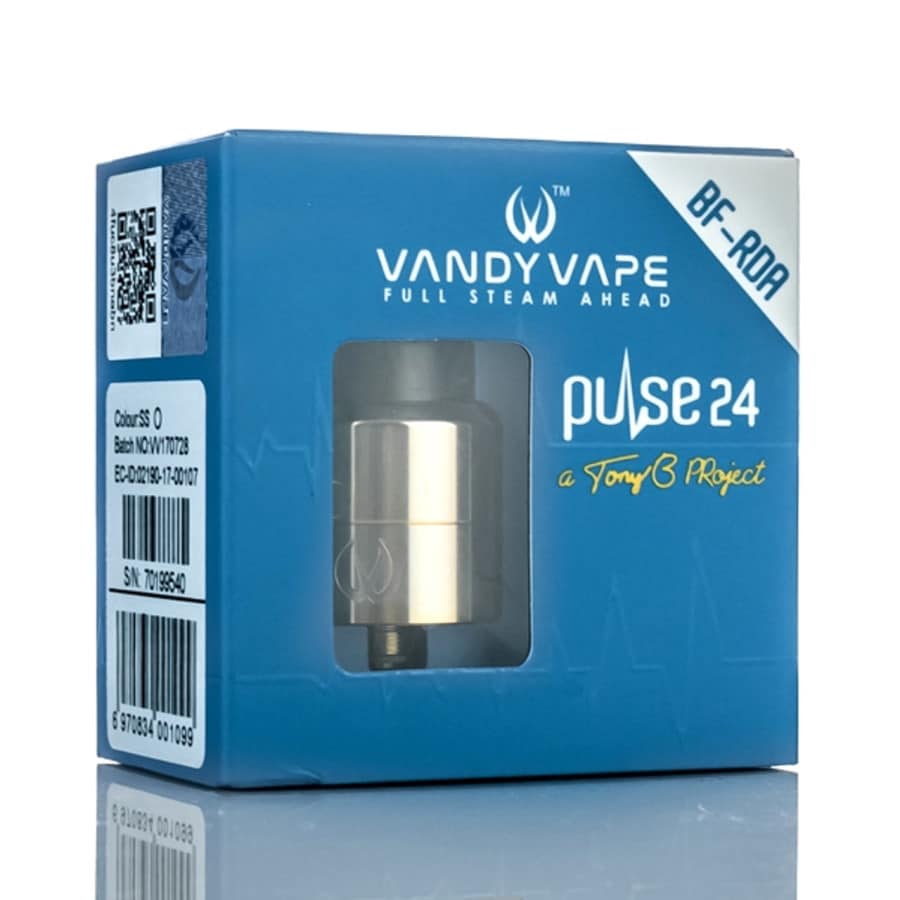

Vandyvape Pulse 24 RDA

Direct coil access without posts? The Vandyvape Pulse 24 RDA opens a postless build deck where your dual coils slot straight into machined holes, held secure by four side-mounted Phillips screws. This 24mm bottom-feeding atomizer transforms squonk mods into precision flavor machines.

Postless Build Deck for Easy Coil Installation

The postless design eliminates the friction of wrapping around traditional posts. Instead, coils sit in four dedicated holes running directly down into the deck — two holes per coil for dual builds, or use just the center pair for single-coil setups if you prefer tighter airflow. The PEEK insulator separates positive and negative sides, keeping resistance clean. For dual-coil builders, this means faster installs and easier coil spacing. Tighten the Phillips screws firmly after positioning — the flat head design prevents stripping. Most builders pair classic aliens, fused claptons, or stapled coils at 2.5–3mm diameter; the postless holes accommodate wraps easily. Resistance typically sits 0.2–0.5 ohm on dual builds, tuned for 50–100W on your squonk mod. Single-coil users can drop sub-ohm twisted or round-wire builds as low as 0.15 ohm. Wicking is straightforward — cut tails short enough to sit just inside the juice wells without crowding the coil. Prime wicks by hand-dripping a few drops of your chosen e-liquid before firing; this prevents dry hits on the first pull. The 2.0ml juice capacity split between two deep side wells means you can chain vape without constant re-squonking, though frequent low-power puffing on dual coils will demand regular bottle clicks.

Leak-Resistant Tubular Airflow for Flavor and Clouds

The Vandyvape Pulse 24 uses tubular side direct airflow — a hallmark of the Pulse series. Instead of top-down airflow, juice-laden air enters from the sides via two adjustable jets per side (four total airflow holes). These tubes sit at an angle, directing air parallel to your coil legs rather than through the center. This geometry reduces turbulence, which cuts spit-back and promotes even heating across both coils. The adjustable top cap locks into place with a conical design that tightens the vapor path slightly, enhancing flavor intensity on restricted direct lung (RDL) hits. You control restriction by rotating the airflow ring — wide open (all four holes clear) chases maximum vapor density and cooler clouds on high-wattage dual builds; half-closed (two holes) amps flavor and tightens the draw for a looser MTL feel; fully closed is useful for single-coil sessions if you strip down to one coil. The leak-resistant design channels squonked juice directly into the side wells via a center splitter, preventing the juice from spraying up onto hot coils and causing violent spit-back. This splitter design also keeps coils from shifting during assembly — critical for airflow alignment. Always align the airflow chamber slots with the notches machined into the deck before screwing the top cap on; misalignment can push those tubular jets into your coils, disrupting airflow and flavor. Pair with 70/30 or 80/20 VG freebase e-liquids for best results; high VG thins faster through dense coil wraps, feeding flavor and vapor smoothly. Lower-nic freebase (3–6mg) suits the wide-open airflow; sub-ohm dual coils heat fast, so lower nicotine prevents harshness.

Squonk-Ready Juice Wells and Everyday Maintenance

The pre-installed squonk pin feeds directly into the deck’s center splitter, which branches juice left and right into the two deep side wells. This bottom-feed design is squonk-optimized — your mod bottle pushes juice up into the wells without spraying across hot coils. If you want to use this RDA on a standard (non-squonk) mod, the gold-plated 510 contact pin swap is simple: unscrew the bottom cap and twist out the squonk pin, then install the standard 510 pin. The 304 stainless steel construction resists corrosion from acidic freebase juices and frequent hand-washing. Gold-plated contacts (510 connection and squonk pin) stay conductive across hundreds of builds. Maintenance is minimal. After each build session or flavor swap, disassemble into three pieces — top cap, barrel, and deck — and rinse under warm water. Use a soft brush or old toothbrush to clear juice residue from the juice wells and airflow tubes. Pat dry with a paper towel and let air-dry fully before reassembly; any water in the barrel can short your mod’s 510 connector if you screw it down wet. The Ultem and Delrin 810 drip tips included are heat-resistant and fit standard 810 drip tip adapters; both are included, so you can swap for custom tips if the stock ones don’t suit your draw preference. Store with the deck empty (no coils) if you’ll leave it sitting for a week or more; dried wicks in an idle RDA can absorb stale flavors. For daily squonk sessions, leave coils installed and simply re-wick when flavor drops — typically after 5–7 days of regular use, depending on how dark your juice stains the cotton.

Upgrade your squonk mod setup with the Vandyvape Pulse 24 RDA and experience postless precision building.
